# Overview of capabilities

## Main features

- Newton-Krylov solver with generic linear / eigen
*preconditioned*solver. Idem for the arc-length continuation. - Newton-Krylov solver with nonlinear deflation and preconditioner. It can be used for branch switching for example. It is used for deflated continuation.
- Continuation written as an iterator
- Monitoring user functions along curves computed by continuation, see events
- Continuation methods: PALC, Moore Penrose, Multiple, Polynomial, Deflated continuation, ANM, ...
- Bifurcation points / events located with bisection
- Compatible with GPU

## Capabilities related to equilibria

- Detection of Branch, Fold, Hopf bifurcation points of stationary solutions and computation of their normal form.
- Automatic branch switching at branch points (
**whatever the dimension of the kernel**) to equilibria **Automatic computation of bifurcation diagrams of equilibria**- Fold / Hopf continuation based on Minimally Augmented formulation, with Matrix Free / Sparse / Dense Jacobian.
- Detection of all codim 2 bifurcations of equilibria and computation of the normal forms of Bogdanov-Takens, Bautin, Cusp, Zero-Hopf. (Hopf-Hopf normal form not implemented)
- Branching from Bogdanov-Takens / Zero-Hopf / Hopf-Hopf points to Fold / Hopf curve

## (limited) Capabilities related to maps

- continuation of fixed points of maps
- computation of normal form of Period-doubling, Neimark-Sacker, Branch point bifurcations.

**Note that you can combine most solvers, like use Deflation for Periodic orbit computation or Fold of periodic orbits family.**

Custom state means, you can use something else than

`AbstractArray`

, for example your own`struct`

.

Features | Matrix Free | Custom state | Tutorial | GPU |
---|---|---|---|---|

(Deflated) Krylov-Newton | Yes | Yes | link | Yes |

Continuation PALC (Natural, Secant, Tangent, Polynomial) | Yes | Yes | All | Yes |

Deflated Continuation | Yes | Yes | link | Yes |

Bifurcation / Fold / Hopf point detection | Yes | Yes | All / All / link | Yes |

Fold Point continuation | Yes | Yes | PDE, PDE, ODE | Yes |

Hopf Point continuation | Yes | `AbstractArray` | ODE | |

Branch point / Fold / Hopf normal form | Yes | Yes | Yes | |

Branch switching at Branch points | Yes | `AbstractArray` | link | Yes |

Automatic bifurcation diagram computation of equilibria | Yes | `AbstractArray` | link | |

Bogdanov-Takens / Bautin / Cusp / Zero-Hopf / Hopf-Hopf point detection | Yes | Yes | ODE | |

Bogdanov-Takens / Bautin / Cusp normal forms | Yes | `AbstractArray` | ODE | Yes |

Branching from Bogdanov-Takens / Zero-Hopf / Hopf-Hopf to Fold / Hopf curve | Yes | `AbstractArray` | ODE |

## Capabilities related to Periodic orbits (PO)

- PO computation and continuation using
**parallel**(Standard or Poincaré) Shooting, Finite Differences or Orthogonal Collocation (mesh adaptive). - Automatic branch switching from simple Hopf points to PO
- Automatic branch switching from simple Period-Doubling points to PO
- Assisted branch switching from simple Branch points to PO
- Detection of Branch, Fold, Neimark-Sacker (NS), Period Doubling (PD) bifurcation points of PO.
- Fold / PD / NS continuation based on Minimally Augmented formulation (for shooting and collocation). Trapezoid method only allows continuing Fold of PO.
- Detection of all codim 2 bifurcations of PO (R1, R2, R3, R4, GPD, NS-NS, Chenciner, Fold-Flip, Fold-NS, PD-NS)
- Computation of the normal forms of PD, NS (for shooting and collocation) using the method based on Poincaré return map or the Iooss normal form (more precise).
- automatic branching from Bautin to curve of Fold of PO
- automatic branching from Zero-Hopf to curve of NS of PO
- automatic branching from Hopf-Hopf to curve of NS of PO

Legend for the table: Standard shooting (SS), Poincaré shooting (PS), Orthogonal collocation (OC), trapezoid (T).

Features | Method | Matrix Free | Custom state | Tutorial | GPU |
---|---|---|---|---|---|

Branch switching at Hopf points | SS/PS/OC/T | See each | ODE | ||

Newton / continuation | T | Yes | `AbstractVector` | PDE, PDE | Yes |

Newton / continuation | OC | `AbstractVector` | ODE | ||

Newton / continuation | SS | Yes | `AbstractArray` | ODE | Yes |

Newton / continuation | PS | Yes | `AbstractArray` | PDE | Yes |

Fold, Neimark-Sacker, Period doubling detection | SS/PS/OC/T | See each | `AbstractVector` | link | |

Branch switching at Branch point | SS/PS/OC/T | See each | ODE | ||

Branch switching at PD point | SS/PS/OC/T | See each | ODE | ||

Continuation of Fold points | SS/PS/OC/T | See each | `AbstractVector` | ODE PDE | Yes |

Continuation of Period-doubling points | SS/OC | `AbstractVector` | ODE | ||

Continuation of Neimark-Sacker points | SS/OC | `AbstractVector` | ODE | ||

detection of codim 2 bifurcations of periodic orbits | SS/OC | `AbstractVector` | ODE | ||

Branch switching at Bautin point to curve of Fold of periodic orbits | SS/OC | `AbstractVector` | ODE | ||

Branch switching at ZH/HH point to curve of NS of periodic orbits | SS/OC | `AbstractVector` | ODE |

## Capabilities related to Homoclinic orbits

This is available through the plugin HclinicBifurcationKit.jl. Please see the specific docs for more information.

- compute Homoclinic to Hyperbolic Saddle Orbits (HomHS) using Orthogonal collocation or Standard shooting
- compute bifurcation of HomHS
- start HomHS from a direct simulation
- automatic branch switching to HomHS from Bogdanov-Takes bifurcation point

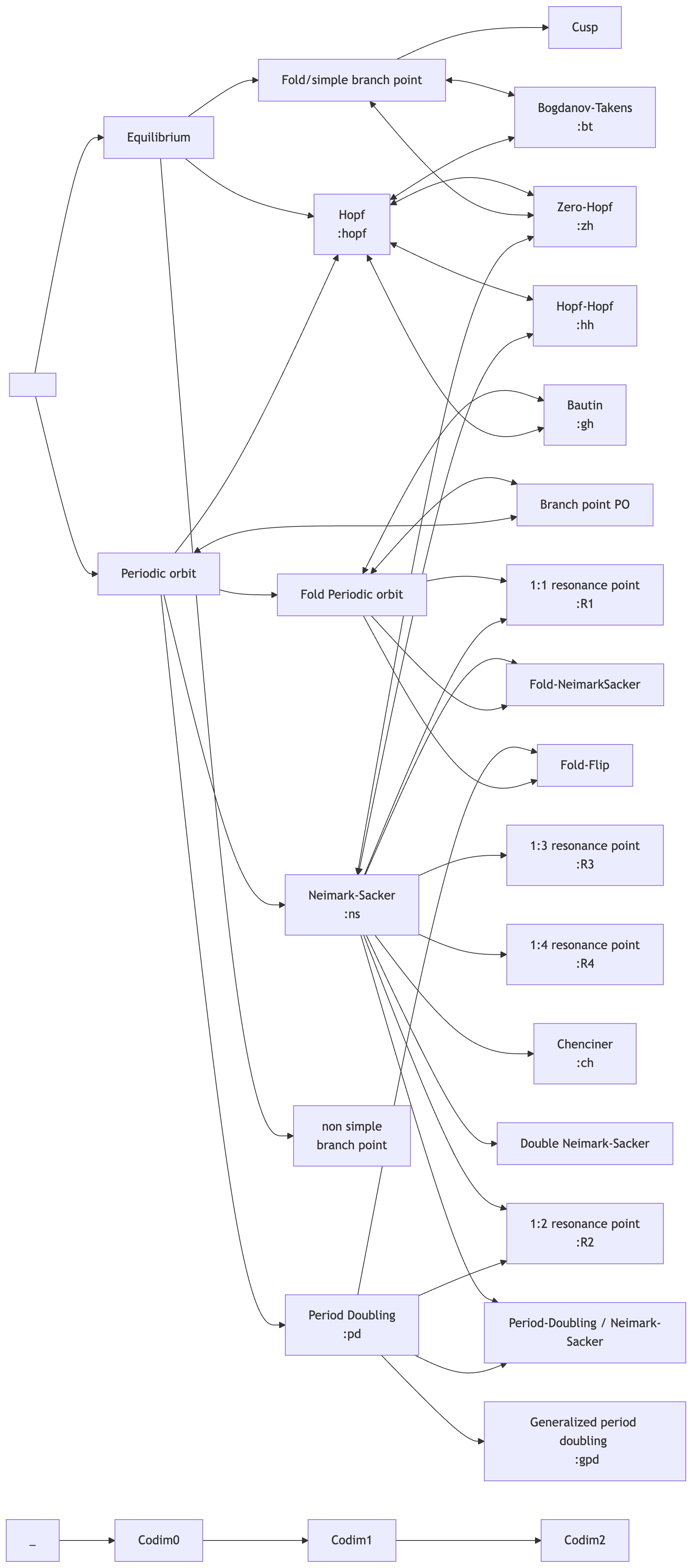

## List of detected bifurcations

A **left-to-right** arrow in the following graph from $E_1$ to $E_2$ means that $E_2$ can be detected when continuing an object of type $E_1$.

A **right-to-left** arrow from $E_2$ to $E_1$ means that we can start the computation of object of type $E_1$ from $E_2$.

Each object of codim 0 (resp. 1) can be continued with 1 (resp. 2) parameters.

```
graph LR
S[ ]
C[ Equilibrium ]
PO[ Periodic orbit ]
BP[ Fold/simple branch point ]
H[ Hopf \n :hopf]
CP[Cusp]
BT[ Bogdanov-Takens \n :bt ]
ZH[Zero-Hopf \n :zh]
GH[Bautin \n :gh]
HH[Hopf-Hopf \n :hh]
FPO[ Fold Periodic orbit ]
NS[ Neimark-Sacker \n :ns]
PD[ Period Doubling \n :pd ]
BPC[BPC]
CH[Chenciner \n :ch]
GPD[Generalized period doubling \n :gpd]
BPC[Branch point PO]
LPPD[Fold-Flip]
LPNS[Fold-NeimarkSacker]
R1[1:1 resonance point\n :R1]
R2[1:2 resonance point\n :R2]
R3[1:3 resonance point\n :R3]
R4[1:4 resonance point\n :R4]
S --> C
S --> PO
C --> nBP[ non simple\n branch point ]
C --> BP
C --> H
BP --> CP
BP <--> BT
PO --> H
PO --> FPO
PO --> NS
PO --> PD
FPO <--> GH
FPO <--> BPC
FPO --> R1
NS --> R1
NS --> R3
NS --> R4
NS --> CH
NS --> LPNS
NS --> NSNS
NS --> R2
NS --> PDNS
PD --> PDNS
PD --> R2
PD --> LPPD
PD --> GPD
H <--> BT
H <--> ZH
BP <--> ZH
H <--> HH
H <--> GH
NS <--> ZH
PO <--> BPC
NS <--> HH
FPO --> LPNS
FPO --> LPPD
_ --> Codim0 --> Codim1 --> Codim2
```
