Temperature model with ApproxFun

We reconsider the first example by relying on spectral collocations using the package ApproxFun.jl which allows very precise function approximation.

This is one example where the state space, the space of solutions to the nonlinear equation, is not a subtype of AbstractArray. See Requested methods for Custom State for more informations.

We start with some imports:

using ApproxFun, LinearAlgebra, Parameters

using BifurcationKit, Plots
const BK = BifurcationKit

We then need to add some methods not available in ApproxFun because the state space is not a subtype of AbstractArray:

# specific methods for ApproxFun
import Base: eltype, similar, copyto!, length
import LinearAlgebra: mul!, rmul!, axpy!, axpby!, dot, norm

similar(x::ApproxFun.Fun, T) = (copy(x))
similar(x::ApproxFun.Fun) = copy(x)
mul!(w::ApproxFun.Fun, v::ApproxFun.Fun, α) = (w .= α * v)

eltype(x::ApproxFun.Fun) = eltype(x.coefficients)
length(x::ApproxFun.Fun) = length(x.coefficients)

dot(x::ApproxFun.Fun, y::ApproxFun.Fun) = sum(x * y)

axpy!(a::Float64, x::ApproxFun.Fun, y::ApproxFun.Fun) = (y .= a * x + y)
axpby!(a::Float64, x::ApproxFun.Fun, b::Float64, y::ApproxFun.Fun) = (y .= a * x + b * y)
rmul!(y::ApproxFun.Fun, b::Float64) = (y.coefficients .*= b; y)
rmul!(y::ApproxFun.Fun, b::Bool) = b == true ? y : (y.coefficients .*= 0; y)

copyto!(x::ApproxFun.Fun, y::ApproxFun.Fun) = ( (x.coefficients = copy(y.coefficients);x))

We can easily write our functional with boundary conditions in a convenient manner using ApproxFun:

N(x; a = 0.5, b = 0.01) = 1 + (x + a*x^2)/(1 + b*x^2)
dN(x; a = 0.5, b = 0.01) = (1-b*x^2+2*a*x)/(1+b*x^2)^2

function F_chan(u, p)
	@unpack alpha, beta = p
	return [Fun(u(0.), domain(u)) - beta,
		Fun(u(1.), domain(u)) - beta,
		Δ * u + alpha * N(u, b = beta)]
end

function Jac_chan(u, p)
	@unpack alpha, beta = p
	return [Evaluation(u.space, 0.),
		Evaluation(u.space, 1.),
		Δ + alpha * dN(u, b = beta)]
end

We want to call a Newton solver. We first need an initial guess and the Laplacian operator:

sol = Fun(x -> x * (1-x), Interval(0.0, 1.0))
const Δ = Derivative(sol.space, 2)
# set of parameters
par_af = (alpha = 3., beta = 0.01)

Finally, we need to provide some parameters for the Newton iterations. This is done by calling

optnewton = NewtonPar(tol = 1e-12, verbose = true)

We call the Newton solver:

out, _, _ = @time BK.newton(F_chan, Jac_chan, sol, par_af, optnewton, normN = x -> norm(x, Inf64))

and you should see

 Newton Iterations
   Iterations      Func-count      f(x)      Linear-Iterations

        0                1     1.5707e+00         0
        1                2     1.1546e-01         1
        2                3     8.0149e-04         1
        3                4     3.9038e-08         1
        4                5     7.9049e-13         1
  0.103869 seconds (362.15 k allocations: 14.606 MiB)

We can also perform numerical continuation with respect to the parameter $\alpha$. Again, we need to provide some parameters for the continuation:

optcont = ContinuationPar(dsmin = 0.0001, dsmax = 0.05, ds= 0.005, pMax = 4.1, plotEveryStep = 10, newtonOptions = NewtonPar(tol = 1e-8, maxIter = 20, verbose = true), maxSteps = 200)

We provide a callback function to check how the ApproxFun solution vector grows during the continuation:

function finalise_solution(z, tau, step, contResult)
	printstyled(color=:red,"--> AF length = ", (z, tau) .|> length ,"\n")
	true
end

Then, we can call the continuation routine

br, _ = @time continuation(F_chan, Jac_chan, out, par_af, (@lens _.alpha), optcont,
	plot = true,
	plotSolution = (x, p; kwargs...) -> plot!(x; label = "l = $(length(x))", kwargs...),
	verbosity = 2,
	normC = x -> norm(x, Inf64))

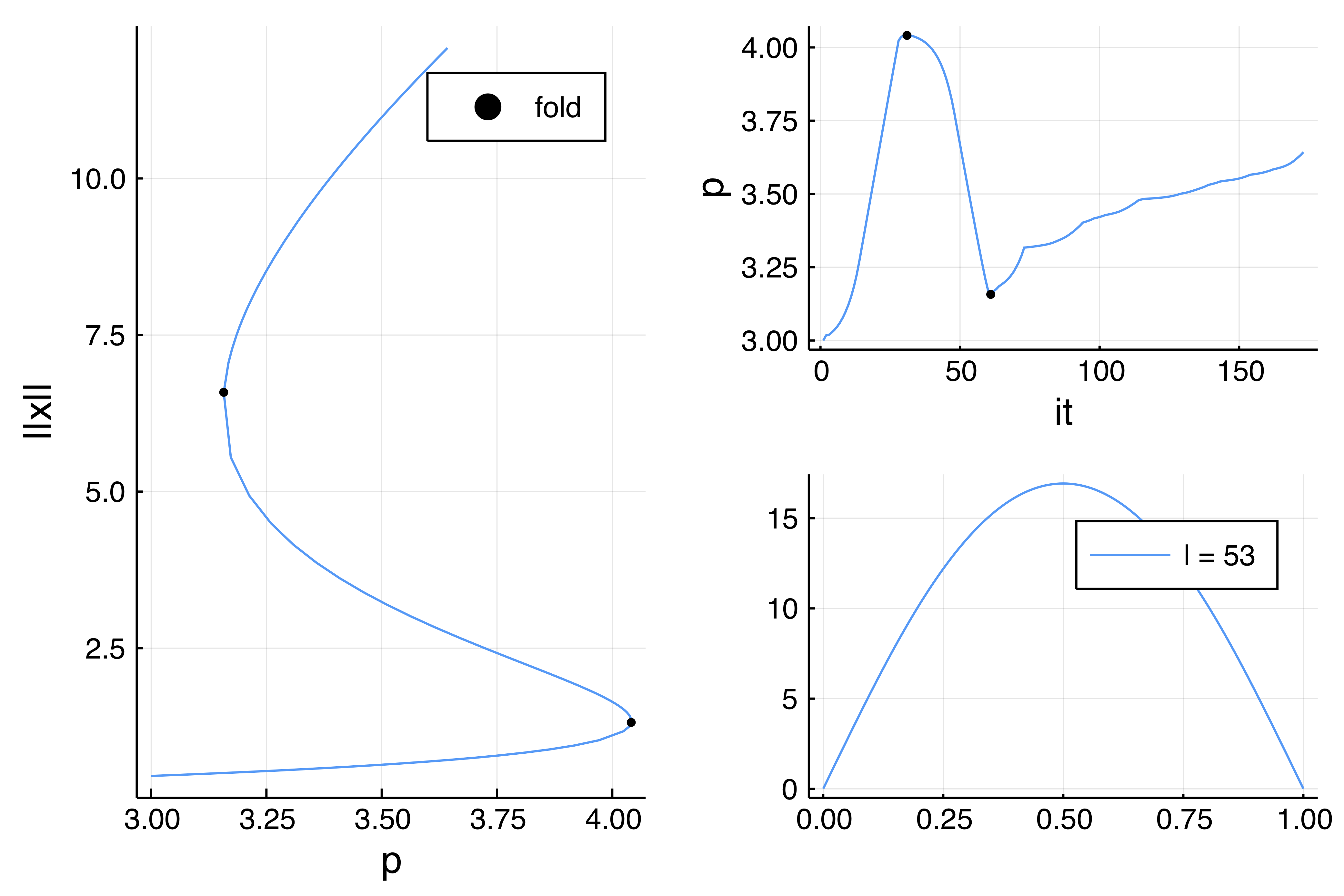

and you should see
