Automatic Bifurcation diagram computation

Thanks to the functionality presented in this part, we can compute the bifurcation diagram of a system recursively and fully automatically. More precisely, the function bifurcationdiagram allows to:

• compute a branch $\gamma$ of equilibria
• detect all bifurcations on the branch
• recursively compute the branches emanating from the simple branch points on $\gamma$.

Pitfalls

For now, there is no way to decide if two branches $\gamma_1,\gamma_2$ are the same. As a consequence:

• there is no loop detection. Hence, if the branch $\gamma$ has a component akin to a circle, you may experience a large number of branches
• if the bifurcation diagram itself has loops (see example below), you may experience a large number of branches

Basic example with simple branch points

using Revise, Plots
using BifurcationKit, Setfield, ForwardDiff
const BK = BifurcationKit

function FbpSecBif(u, p)
	return @. -u * (p + u * (2-5u)) * (p -.15 - u * (2+20u))
end

D(f, x, p, dx) = ForwardDiff.derivative(t -> f(x .+ t .* dx, p), 0.)
dFbpSecBif(x,p)         =  ForwardDiff.jacobian( z-> FbpSecBif(z,p), x)
d1FbpSecBif(x,p,dx1)         = D((z, p0) -> FbpSecBif(z, p0), x, p, dx1)
d2FbpSecBif(x,p,dx1,dx2)     = D((z, p0) -> d1FbpSecBif(z, p0, dx1), x, p, dx2)
d3FbpSecBif(x,p,dx1,dx2,dx3) = D((z, p0) -> d2FbpSecBif(z, p0, dx1, dx2), x, p, dx3)
jet = (FbpSecBif, dFbpSecBif, d2FbpSecBif, d3FbpSecBif)

# options for Krylov-Newton
opt_newton = NewtonPar(tol = 1e-9, verbose = false, maxIter = 20)
# options for continuation
opts_br = ContinuationPar(dsmin = 0.001, dsmax = 0.05, ds = 0.01, pMax = 0.4, pMin = -0.5, detectBifurcation = 3, nev = 2, newtonOptions = opt_newton, maxSteps = 100, nInversion = 4, tolBisectionEigenvalue = 1e-8, dsminBisection = 1e-9)

diagram = bifurcationdiagram(jet...,
	# initial point and parameter
	[0.0], -0.2,
	# specify the continuation parameter
	(@lens _),
	# very important parameter. This specifies the maximum amount of recursion
	# when computing the bifurcation diagram. It means we allow computing branches of branches
	# at most in the present case.
	2,
	(args...) -> setproperties(opts_br; pMin = -1.0, pMax = .3, ds = 0.001, dsmax = 0.005, nInversion = 8, detectBifurcation = 3,dsminBisection =1e-18, tolBisectionEigenvalue=1e-11, maxBisectionSteps=20, newtonOptions = (@set opt_newton.verbose=false));
	printSolution = (x, p) -> x[1])

This gives

julia> diagram
Bifurcation diagram. Root branch (level 1) has 4 children and is such that:
Branch number of points: 76
Branch of Equilibrium
Bifurcation points:
 (ind_ev = index of the bifurcating eigenvalue e.g. `br.eig[idx].eigenvals[ind_ev]`)
- #  1,      bp point around p ≈ 0.00000281, step =  31, eigenelements in eig[ 32], ind_ev =   1 [converged], δ = ( 1,  0)
- #  2,      bp point around p ≈ 0.15000005, step =  53, eigenelements in eig[ 54], ind_ev =   1 [converged], δ = (-1,  0)

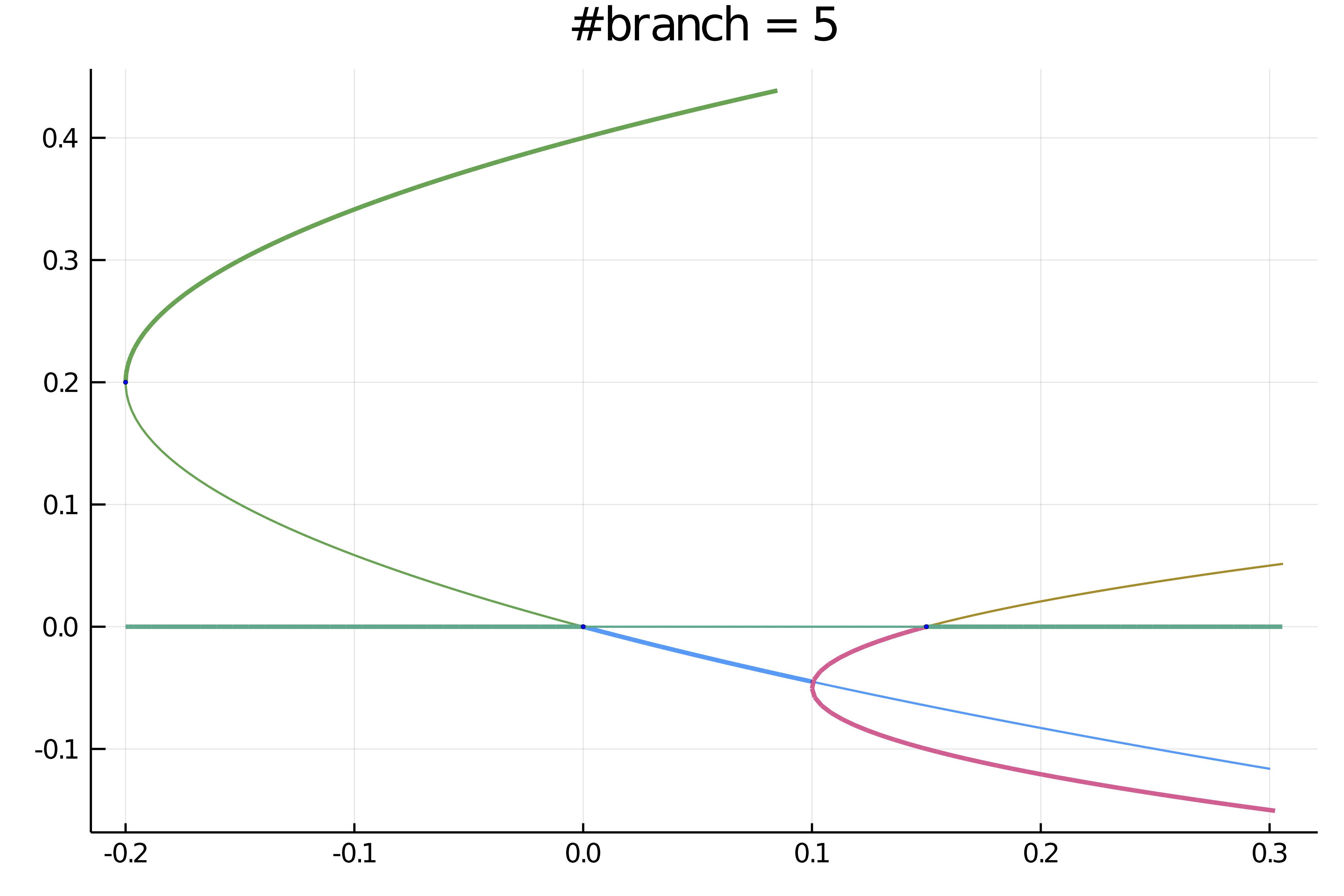

You can plot the diagram like plot(bdiag; putbifptlegend=false, markersize=2, plotfold=false, title = "#branches = $(size(bdiag))") and it gives:
